Quality Control - Technology |
|
 |
 |
 |
 |
|
HINGECOME utilizes precision instruments to do quality management, not only filtering qualified products, but also digitize the test, which could use them as design data and as basis for improving the production procedure. |
|
 |
 |
 |
|
|
| |
"Precision-test" is mainly performed by optical instruments. The accuracy of product can be accurately interpreted, and the relevant test data could be filed and managed.
HINGECOME’s optical instruments are listed below : |
|
| |
| |

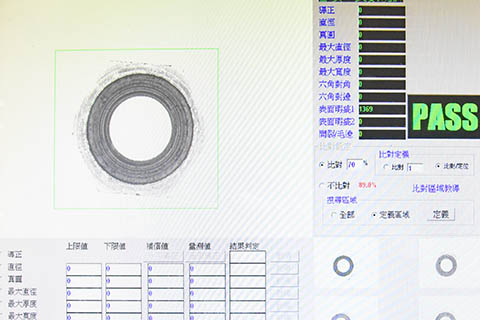

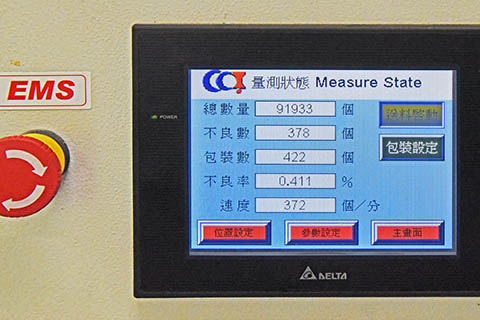

1. Optical filtering machine, which uses CCD as optical detection, according to the input numerical values, the qualified and unqualified products is automatically distinguished.

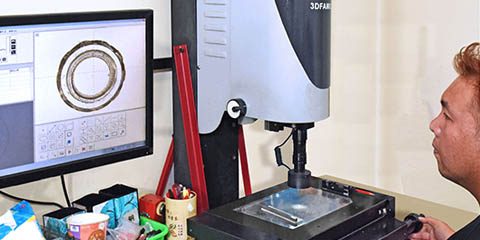

2. 2.5D projector, which could amplify the vision of products, measuring the tolerance of products.

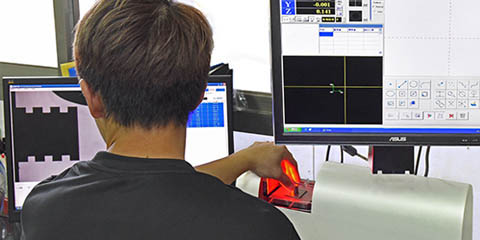

3.2D optical test equipment, which could be set as multi test-item, the qualified and unqualified products is automatically distinguished. |
|
 |
|
|
|
|
|
|
 |
 |
|
|
| |

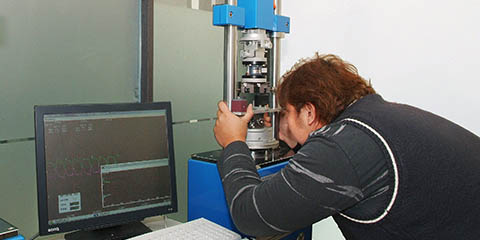

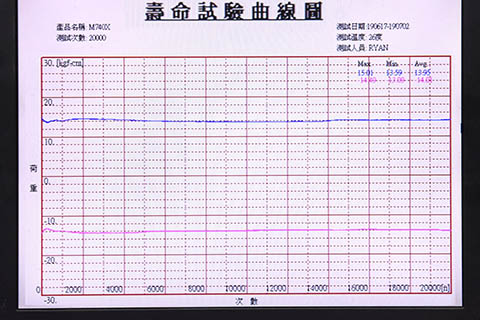

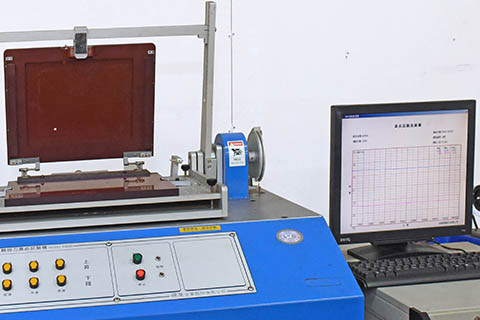

“Life Test” uses torque-test machine as sampling and it simulates the action of hinge, record the correspondence between hinge′s torsion times, torque value and elastic value, making data and charts to estimate the performance of the whole batch of products, filing and managing relevant data.
|
|
 |
|
|
|
|
|
 |
 |
 |
 |
|
 |
|
| |
|
|
|
|
|
